Thank you for considering Sheffield for your cutting needs. For your convenience we have included within our web site a sampling of our most popular machines for your review.
What makes a Sheffield strip cutter different from other strip cutters?
Here are 10 Features that are standard in all of our machines.
1) The top rollers on our machines are gear driven not pressure driven (springs) like other strip cutters,
because of this exclusive feature there is less slippage of material.
2) The tolerance on our machines is + - 0.05% of total cut.
3) We use only the best stepping motors (Japanese).
4) We guarantee all the parts for 1 year (including heating elements and knives).
5) Electronics are guaranteed for 2 years.
6) Very simple to operate.
7) Our machines are available for 2 weeks trial period.
8) Our machines measure in Inches and MM.
9) Affordable and in stock replacement parts.
10) Machines are CE approved."LEASING AVAILABLE"
Click Here to View Control Panel
Click Here for Exploded View
Click Here to View Parts ListHot & Cold Automatic Strip Cutting Machine
Model: HC-530
A Hot and Cold Strip Cutting Machine for under $3800.00 US. It will cut elastic, webbing (Up to ¼" Thick), Ribbons, Belt Loops, Hook & Loop, Nylon Cords, Leather, Safety Belts, Rubber and Vinyl to name a few.
• POWER SUPPLY - 110 volts.
• FEEDING SPEED - adjustable up to 13 inches per sec.
• CUTTING LENGHT - approx 400 ft.
• CUTTING WIDTH - 4 inches.
• TOLERANCE - .05% of total cut.
• QUANTITY - up to 99,999 pieces.
• COUNTER - pre set up to 99,999.
• SAFETY - knife cover sensor - auto stop roll end sensor.
• AUTO - feed/reverse.
• ALL PARTS AND LABOR GUARANTEED FOR 1 YEAR.Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Hot & Cold Automatic Strip Cutting Machine
Model: HC-530ES
With our Model HC-5030ES you can cut pieces up to 4" wide and 9" long on demand, no more wasted material, only cut what you need. Here is how it works, as the machine cuts a piece of hook & loop or webbing the material slides down the guided track and stops at the edge of the guide, when the operator removes that piece, the sensor (with adjustable delay) sees there is no material in place and will automatically cut another piece. Properly positioned machine can feed 2 operators at the same time. When you don't need the on demand feature the machine converts to a standard HC-530 hot an cold strip cutter.
Click Here to View Control Panel
Click Here for Exploded View
Click Here to View Parts ListCall us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Hot & Cold Automatic Strip Cutting Machine
Model: HC-530CD
The HC-530CD was developed specifically for government contractors doing name tags. It replaces an operation currently done by hand. With the highest quality sensors our machines are able to determine different color shades, this feature allows you to cut the webbing 3 to 4 inches before the first letter of a name and 3 to 4 inches afte the last letter. The sensitivity of the sensors is adjustable to any color or contrast. Machine available with hot/cold blades.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.

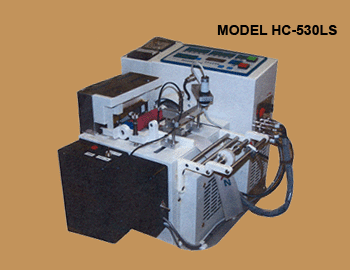

Line Sensor Strip Cutter
Model: HC-530LS
Model HC-530LS is able to detect and cut on line markings.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Pneumatic Hot and Cold Strip Cutter
Model: HC-530A
With a 4" blade and dwell timer this machine will cut thru heavy webbing, synthetic cord, cardboard, leather, plastic...
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
4" Metal Strip Cutter
Model: 1190
Strip Cutting Machine specifically made for cutting metals and hard plastic.
WILL CUT:
• Silver • Copper • Wire • Wire Harness
• Wire Mesh • Foil • Aluminum • Brass
• Gold • TubingCall us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Electronic Hot/Cold Strip Cutting Machine
Model: HC-810
The HC-810 automatically cuts and seals synthetic materials without fraying. Nylon cord can also be cut. This machine is delivered equipped with a time delay feature which allows the time which the knife is down to be controlled for cutting very thick materials.
Click Here to View Control Panel
Click Here for Exploded View
Click Here to View Parts ListCall us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Click Here to View Control Panel
Click Here for Exploded View
Click Here to View Parts ListElectronic Hot/Cold Strip Cutting Machine
Model: HC-204
All the same features as the HC-810 except it does not require compressed air.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Digital Strip Cutter Machine - 8 inch Hot/Cold
Model: HC-861
Same specs as the HC-810 but with 2 heavy duty heating elements (850 watts each) and 2 extra inches. It gives you the capacity to cut more webbing at the same time.
Click Here to View Control Panel
Click Here for Exploded View
Click Here to View Parts ListCall us for more information on our "TRY IT BEFORE YOU BUY IT" policy.

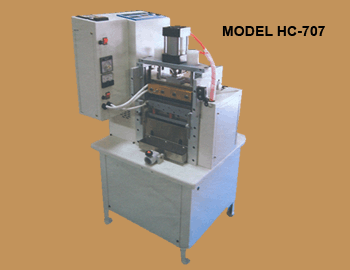

Model: HC-707
Hot and Cold Strip cutter with 9" blade.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.

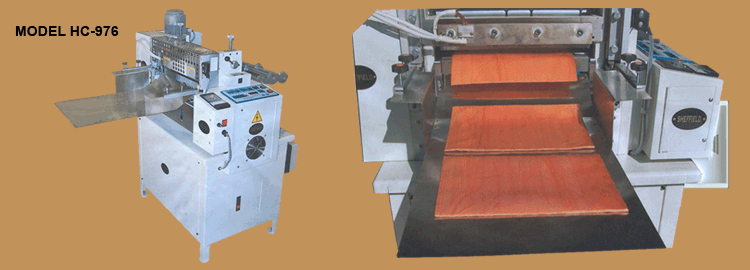

Model: HC-976
Our largest (14" blades) Hot and Cold Strip cutting machine.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Cutting Machine for Fillet Hook & Loop Fasteners
Model: C-918
When you need to cut different shapes of hook & loop, "this is The Machine."
It works like a strip cutter and can be set for different lengths. The great advantage is it cuts the pieces with a die and has many shape options. Should you require a shape not shown we can fabricate the dies to your specifications up to 2" width of any shape. Call us today for your specific requirements.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.

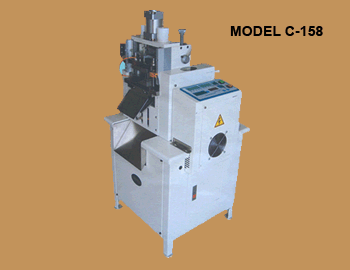

Model: C-158
Form Strip Cutter
If you need webbing or hook & loop with the corners rounded off, or other unique shapes Model C-158 is able to accomplish the task.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Hot/Cold Angle Strip Cutter
Model: HC-380
This Angle Strip Cutter cuts Elastic, Webbing, Ribbons, Belt Loops, Hook & Loop, Nylon Cord, Leather, Safety Belt, Rubber, Vinyl and Light Gauge Wire. Can cut any angle from 0° to 45°. Also does alternating angles, the settings of the front and back angles are independent.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Ultrasonic Angle Cutter
Model: US-119
Same features as Model HC-380. Able to cut any angle from 0 to 45 degrees, will also do counter angle and straight cuts. Angle adjustments are done electronically and takes seconds to program a different angle ... very easy to operate.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
6 Inch Hot/Cold Angle Strip Cutter
Model: HC-384
With a 10.75 inch blade and adjustable angle, thre's not much this machine can't do. Fully automatic and easy to operate, will cut the lightest ribbon or the heaviest webbing. With the 10.75" knife you are able to cut 5 rolls of 2 inch webbing at the same time or cut 6" material at any angle you desire.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
6 Inch Zig Zag Strip Cutter
Model: HC-613Z
Model HC-613Z is for when a Zig Zag finish is required.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Hot Angle Strip Cutter
Model: HC-218Z
When you need to cut webbing (hot only) with a zig zag finish this is the machine. All other specs are like model HC-384 and HC-380.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Ultrasonic Strip Cutting Machine
Model: US-566
This special purpose machine will cut any flexible material such as Safety Belt Webbing, Fabric, Plastic, Cord, Hook & Loop, etc.... without leaving a burn mark. It is the ideal machine for Medical and Automotive applications.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Model: US-566A
Model US-566A is 3 machines in 1. It will cut and seal (HOT) webbing or hook and loop (COLD) at the same time the ultrasonic head will punch and seal round and oval holes in between the cut.
Ideal for the automotive industry.
Please call us with your specific needs.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
6-Inch Hot and Cold Digital Strip Cutter with Adjustable Line Marker
Model: HC-888M
When you need to line mark and cut webbing, hook & loop or any flexible material, our model HC-888M is the affordable machine for the job.
Call us with your special requirements.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Strip Cutter with Hole Punch Capacity
Model: HC-888P
When your requirements demand a strip cutter that not only cuts the material but also punches and seals one or more holes, model HC-888P can accomplish the task.
For a price quote we will need to see your sample.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Rope Cutter
Model: H-222
Model H-222 will cut and seal rope up to 1 inch diameter.
We will need your sample before quoting machine.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
7 3/4 Inch, Piece Cutter
Model: C-700
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
14 Inch, Piece Cutter
Model: C-140
This fully automatic 14 inch Cold Cut Machine is fully capable for cutting Paper, Cloth, Leather, Plastic, Cord, Fiberglass, Composite, Cardboard, Hook & Loop and virtually all other synthetic materials.
With easy to read instructions and straight forward programming it makes hard jobs seem easy.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.

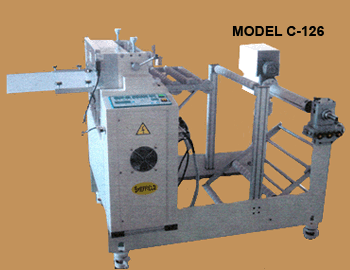

14 Inch, Cutting/Unwinder Machine
Model: C-126
Two machines in one! A 14 inch blade machine with an automatic unwinder, will handle rolls up to 200 pounds and still maintain precise tolerance. Excellent for cutting rubber, plastics, neoprene, cardboard, fiberglass, paper, etc.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
24" Blade Piece Cutter
Model: C-1956
When you need to convert rolls up to 24 inches wide into cut pieces, our model C-1956 is the perfect machine for the job. With the adjustable tray , the cut piecs will stack up neatly. And with the built in unwinder even elastic materials will always meet the required tolerances. Able to cut plastic, textiles, elastic, composites, rubber, graphite, leather, vinyl, Hook & Loop, rope, paper, cardboard, etc....even metal shim. 220 volts.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
25" Blade Piece Cutting Machine
Model: C-1957
Electronically controlled, digital settings for cutting lengths up to 25 inches wide. Cold only. Machine equipped with casters. Will cut: paper, plastic, cardboard, leather, carpet, cloth, carbon fiber, graphite, fiberglass, 1/16" metal.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
44" Blade Piece Cutting Machine
Model: C-1958
Electronically controlled, digital settings for cutting lengths up to 44 inches wide. Cold only. Machine equipped with unwinder, and adjustable piece tray. Will cut: paper, plastic, cardboard, leather, carpet, cloth, carbon fiber, graphite, fiberglass, 1/16" metal.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
46" Blade Piece Cutting Machine
Model: C-1959
Electronically controlled, digital settings for cutting lengths up to 46 inches wide. Cold only. Machine equipped with auto pre-feeder and casters. Will cut: paper, plastic, cardboard, leather, carpet, cloth, carbon fiber, graphite, fiberglass, 1/16" metal.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
48" Blade Piece Cutter
Model: C-1960
When you need to convert rolls up to 48 inches wide into cut pieces, our model C-1960 is the perfect machine for the job. With the adjustable tray , the cut piecs will stack up neatly. And with the built in unwinder even elastic materials will always meet the required tolerances. Able to cut plastic, textiles, elastic, composites, rubber, graphite, leather, vinyl, hook & loop, rope, paper, cardboard, etc....even metal shim. 220 volts.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
60" Blade Piece Cutter
Model: C-1961
When you need to convert rolls up to 60 inches wide into cut pieces, our model C-1961 is the perfect machine for the job. With the adjustable tray , the cut piecs will stack up neatly. And with the built in unwinder even elastic materials will always meet the required tolerances. Able to cut plastic, textiles, elastic, composites, rubber, graphite, leather, vinyl, hook & loop, rope, paper, cardboard, etc....even metal shim. 220 volts.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Rotary Die Piece Cutter - 5 inch
Model: 6525-5
The Model 6525 DC Rotary Die Cutting (laminating) and Converting Maching is a narrow web table top die cutter designed to die cut an extremely wide range of materials that consists of different thickness, such as paper, rubber, cork, foam, hook & loop, medical products and many more.
Model 6525 DC will offer 2 die stations. One of the die stations has a registration adjustment that allows for the dies to be registered with one another. This also allows for tight registration between the die stations. The die stations in the 6525 DC are constructed from heavy rigid aircraft grade aluminum. The lower shafts within the die stations are made from a high grade tool steel and are precision manufactured to assure precision die cutting and long life. Precision bearings ar installed on the lower shafts to give optimum performance. Rotary dies can also be easily and quickly changed in the die stations to allow for quick change over.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Rotary Die Piece Cutter - 10 inch
Model: 6525-10
The Model 6525 DC-10 Rotary Die Cutting (laminating) and Converting Machine is a narrow web table top die cutter designed to die cut an extremely wide range of materials that consist of different thickness, such as paper, rubber, cork, foam, hook & loop, medical products and many more.
Model 6525 DC-10 will offer 2 die stations. One of the die stations has a registration adjustment that allows for the dies to be registered with one another. This also allows for tight registration between the die stations. The die stations in the 6525 DC-10 are constructed from heavy rigid aircraft grade aluminum. The lower shafts within the die stations are made from a high grade tool steel and are precision manufactured to assure precision die cutting and long life. Precision bearings ar installed on the lower shafts to give optimum performance. Rotary dies can also be easily and quickly changed in the die stations to allow for quick change over.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Micro-Computer Controlled Strip Cutters
Model: 50K-FW
Easy operation. High Speed Feeding: 14 inches/sec. Accurate Advance: Stepping motor driving controlled by Micro-Cromputer. Sharp Cutting: Having high quality blades and superior cutting mechanism. Automatic Stopping Device: Equipped with pre-set counter and stop motion device. Memory: Able to input up to five different cutting lengts.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Strip Cutter
Model: 82K-3S Cold Cut
The MM Strip Cutter cuts very thin tapes such as polyfilm and ribbons as well as thick materials such as leather belts and safety belts. There are a variety of models available both Hot and Cold, Mechanical Type and Digital Type.
Model 82K-3S is the quickest cutter available.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Computer Strip Cutting Machine
Models: SM-160
The SM-160 series is designed especially for the U.S.A., E.E.C. and other special request markets. Blade width 160mm, 6.25 inches.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Heavy Duty 14" Automatic Unwinder / Pre-Feeder
Model: PF-18
With 2 independent stepping motors, this machine feeds the material and unwinds the roll at the same time.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Auto Feeder
Model: F-68
This feeder is specifically made for unwinding tubing, rope, wire etc. 2 stepping motors assures you consistency and even feeding.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Automatic Pre-Feeder
Model: PF-33
This automatic pre-feeder was specifically designed to unwind heavy rolls up to 150 lbs. This is the ideal accessory to maintain speed, accuracy and tolerance on any strip cutter.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Belt Cutting Machine
Model: BC-49
36 inch wide cutting base with adjustable guides. 220 volts.
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Manual Production Hot Cutter
Model: H-5
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.

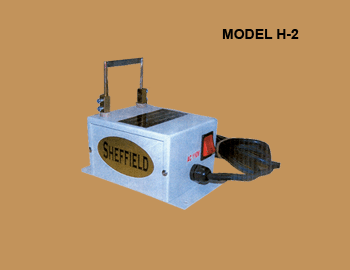

2" Manual Cutter
Model: H-2
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Machine Stand
Model: MS-24
This all metal stand with tool box compartment and locking wheels is ideal for models HC-530, HC-5300, 530ES, 530CD and C-918
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.

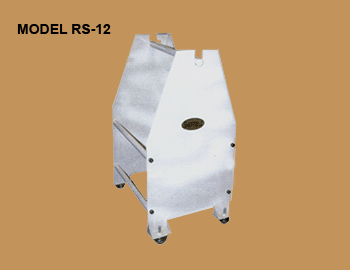

Roll Stand
Model: RS-12
SPECS:
1 1/4 inch core
28 inch diameter of roll
15 inch wide rollCall us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
Precision Cleaner/Degreaser
Model: CS290
The most effective way to clean strip cutters, will remove adhesives, dried glue, oil, grease, or any other build up on rollers and knifes (will not damage polyurethane rollers).
Call us for more information on our "TRY IT BEFORE YOU BUY IT" policy.
